Irradiance of LED sources within the wavelength range from 360 nm - 450 nm. RADIN sensor element with rigid light guide to the detector. 0.5 m cable with -5 connector. K-RCHn16-S calibration of the irradiance sensitivity in A/(W/cm²) at 365 nm 375 nm 385 nm 395 nm 405 nm and 430 nm with calibration certificate. K-UV-SR calibration of the relative spectral sensitivity.

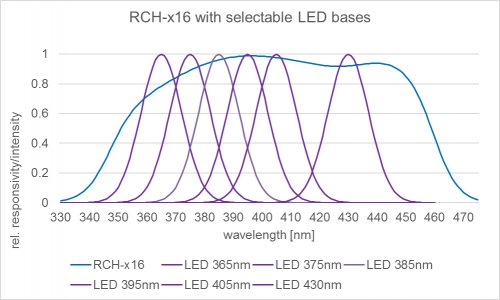

The detector is calibrated for 6 typical UV LED wavelengths in terms of its spectral irradiance responsivity and is supplied with a factory calibration certificate that corresponds to the high standard of the measuring laboratory for optical radiation measurements of Gigahertz-Optik. If necessary, a test certificate accredited according to DIN EN ISO / IEC 17025 can optionally be created for the detector with the associated measuring device.
| Main features | Detector for the high UV radiation levels in UV radiation curing. Large safety distance between the handle and the radiation sensor of the detector |

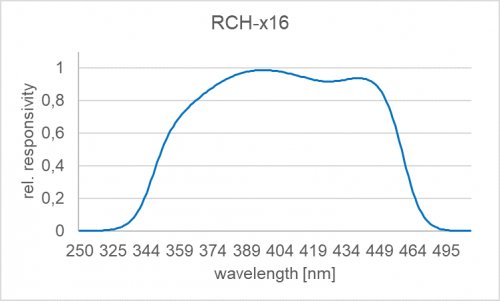

| Measurement ranges | Spectral responsivity 360 nm to 450 nm. Linear measuring range from 0.1 mW / cm² to 40,000 mW / cm² with measuring device X1-1 |
| Calibration | Calibration of the spectral irradiance responsivity in A / (W / cm²) for 6 typical UV HLEDs wavelength. Factory calibration certificate of the measuring laboratory of the Gigahertz-Optik. Optional DIN EN ISO / IEC 17025 accredited test certificate |
| Dimensions | Measurement head: Height: 8 mm / Diameter: 37 mm Detector element: Length: 65 mm / Diameter: 15 mm |
| Light Guide | Rigid, Length 22c m / 8.7 inch |
| Max. Irradiance | 40 W/cm² |
| Max. signal current | 100 μA |
| Temperature range | up to + 100 °C (short-term) |
| Humidity | <80%, non-condensing |
| Cable Length | 50 cm |
