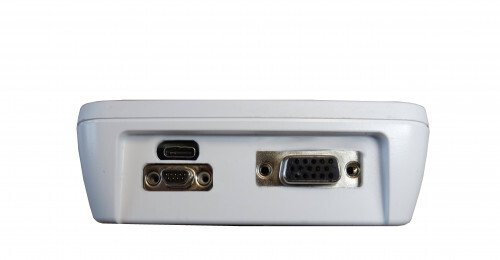

Single-channel device for mobile and stationary use. High Dynamic Range of 9 decades. Menu selection for operating modes measuring parameters calibration data etc. Use of large color touch display and/or buttons. Compatible to -5 calibration data plugs and other type of connector plugs when using appropriate adapter cable (e.g. -2 connector). USB-C interface and analog I/O (D-SUB15 connector). Battery and power supply operation. Charging via USB interface possible. Manual included. Incl. case.
- Compact precision instrument for field service and feature packed for laboratory use

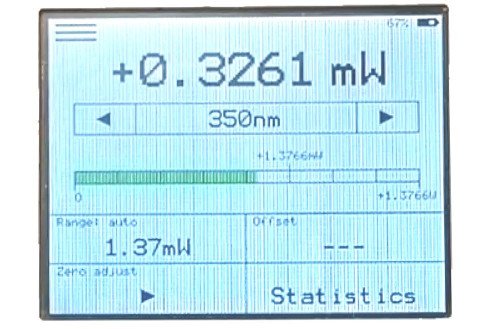

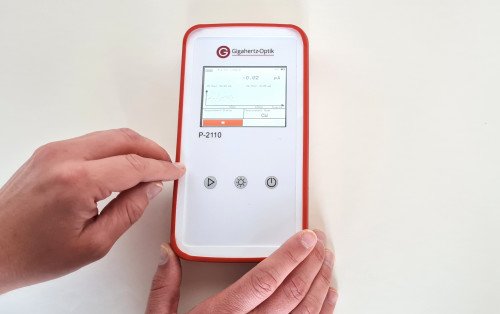

- Multifunctional color touchscreen and intuitive 3-button menu operation (pure button, mixed use as well as pure touch use allow all functions)

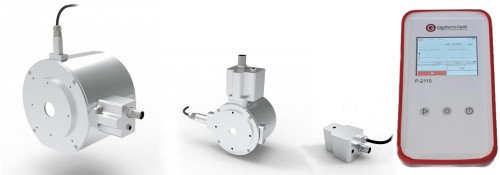

- Calibration data port in detector basket for easy detector replacement
- Measurement of DC, AC, single pulse and modulated radiation
- 100 μs fast sampling rate
- Adjustable integration time from 100 μs to 6 s
- Wide dynamic range of detector signal from 0.1 pA to 2 mA
- USB interface for remote control operation (additionally RS232 and RS485 available)
- Trigger In/Output via DSUB as well as Analog-Out
- S-P21 software & S-SDK-P21 software development kit available
- Adapter cable available to use P-21 (-5 connector) with P-9710 detectors (-2 connector)

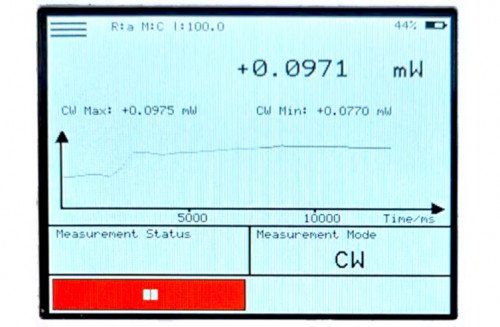

| CW: | Used to measure continuous DC or AC signals at the selected integration time from 100 μs to 6 s. The reading, units of measurement and the selected wavelength as applicable for the connected detector are displayed. Manual or auto-range operation as selected. |
| CW dose | Measure values are summed at a logging rate of one second and the value displayed as the integrated energy. The dose function can be manually run/stop or automatically run/stop at preset dose measurement times (timing based starting from 1s or a max dose level) with status display. |
| Pulse energy with analog output and trigger function | Energy measurement of a single or pulse chain within a selected time span. |
| Pulse offset | A preset value, such as the ambient light level, is subtracted from the IEffective and Pulse Energy reading. User selects ‘Static Offset’ to subtract a constant value. ‘Continuous Offset’ subtracts the actual measured value before the pulse measurement starts. |
| Peak/Peak or Peak minimum or maximum | These modes allow analysis of signal stability with the selected integration interval (e.g. flicker). The min, max or p-p values are displayed together with the CW average value. Only signals longer than the gain dependent slew-rate can be measured. |
| I-Effective luminous intensity: | Evaluation of the effective luminous intensity of flashing sources (single flash) per Schmidt-Claussen or Blondel-Rey methods. |
| CW offset | Subtracts a constant offset value, ambient light level for example, from CW reading |
| CW minimum or maximum | Minimum or maximum reading attained during measurement period is displayed along with the current reading |
| CW level check | Compares the measured CW value with a stored preset upper and lower limit values |
| Analog output | Direct analogue amplifier output |
| Ratio (relative (%), log (db), factor): | Measurement of the ratio between a reference value and actual measured value and displayed as relative ratio (%), log ratio/attenuation (db or dBm) or ratio factor |
| Reference: | Used in ratio measurement mode. Values can be set to 1 with selected unit (W, A, etc.), or a CW measured value or manually entered value. Ref value 1.000 mW can be used to measure attenuation in dBm. |
| Hold: | Freezes currently displayed reading |
| Datalogger: | More than 12.000 data points can be stored with a sample rate of 0.1 s to 9999.9 s. |
| Manual entry of calibration data | For individual calibration correction factor entry |
| Default initialization | Resets all parameters to factory default condition |
