VISIBLE 400 to 800nm effective irradiance. 37-type standard package. 2m cable with -5 connector. K-RW3703-I calibration of the irradiance sensitivity in A/(W/m²) and A/(W/cm²) with calibration certificate. K-SI-SR calibration of the relative spectral sensitivity. Optional KDW calibration with accessory.

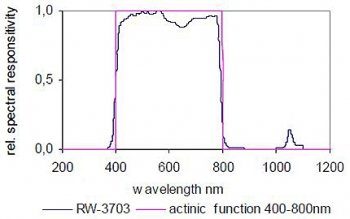

| Spectral responsivity | radiometric (400 - 800) nm |
| Typical responsivity | 1.5 nA/(W/m²) |
| Max. signal current | 1 mA |
| Input optics | 11 mm Ø diffusor window |
| Input optics | Cosine F.O.V. |
| Housing | 37 mm Ø, 32 mm height |
| Mounting | side M6 thread hole |
| Temperature range | (5 - 40) °C |
| min. signal current | depends on optometer |
| Rise time | 150 ns |
| Measurement ranges |
