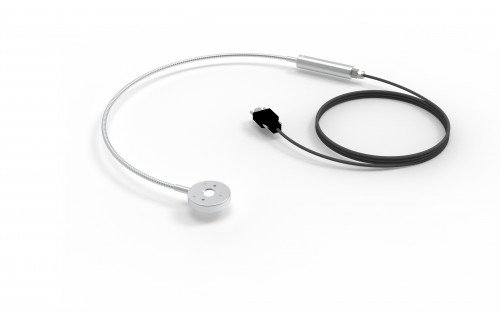

BLUE 400 nm - 460 nm effective irradiance. RADIN sensor element with 0.5 m flexible light guide to the detector. 0.5 m cable with -5 connector. K-RCHn09-I calibration of the irradiance sensitivity in A/(W/m²) and A/(W/cm²) with calibration certificate. K-UV-SR calibration of the relative spectral sensitivity.
The detectors are calibrated with regard to their responsivity to irradiance and are supplied with a factory calibration certificate that corresponds to the high standard of the measuring laboratory for optical radiation measurements of Gigahertz-Optik. If necessary, a test certificate accredited according to DIN EN ISO / IEC 17025 can optionally be created for the detector with the associated measuring device.
| Main features | Detector for the high UV radiation levels in UV radiation curing. Large safety distance between the handle and the radiation sensor of the detector. |

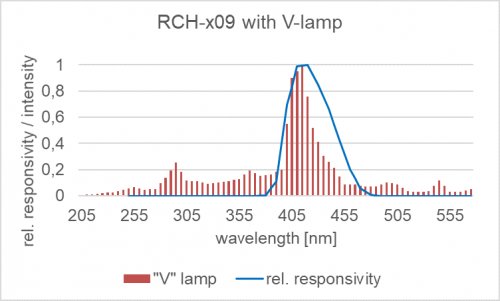

| Measurement ranges | Spectral responsivity 390 nm to 460 nm. Linear measuring range from 0.1 mW / cm² to 40,000 mW / cm² with measuring device X1-1 |
| Calibration | Calibration of the irradiance responsivity in A / (W / cm²) with factory calibration certificate of the measuring laboratory of the Gigahertz-Optik. Optional DIN EN ISO / IEC 17025 accredited test certificate |
| Dimensions | Measurement head: Height: 8 mm / Diameter: 37 mm Detector element: Length: 65 mm / Diameter: 15 mm |
| Light Guide | Flexible: 50 cm / 20 inch |
| Typical responsivity | BLUE Peak 430nm: 0.4 nA/(mW/cm²) |
| Max. Irradiance | 40 W/cm² |
| Max. signal current | 100 μA |
| Temperature range | up to + 100 °C (short-term) |
| Humidity | <80%, non-condensing |
| Cable Length | 50 cm |
