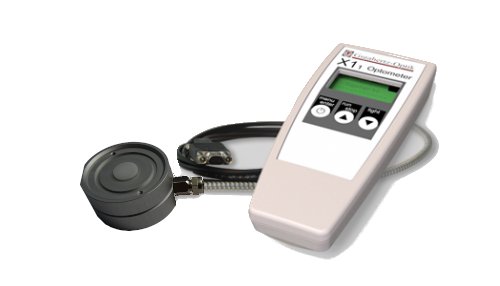

UV-C 254nm irradiance with cosine adapted field-of-view. 37 type housing with 2m length cable and -5 connector. K-UV3725-S calibration of the radiometric irradiance responsivity in A/(W/m²) and A/(W/cm²) and the UV-C 254nm ICNIRP weighted 254 UVR effective irradiance responsivity in A/(W/m²). K-UV-SR calibration of the relative spectral responsivity. Calibration certificate.
- Accurately measure germicidal irradiance levels up to 2000 mW/cm²
- Assess UV-C risk hazard down to 0.002 μW/cm²

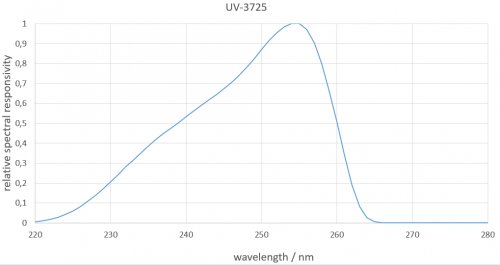

- Individually calibrated for spectral irradiance responsivity at 254 nm
- Cosine corrected field of view
- Peak hold function allows unmanned UVGI measurement in unoccupied areas
- Protective stainless steel sheath protects UV degradation of detector cable
- Optional software for remote control and datalogging via PC
- Portable, hand held system for in the field use
One of the unique features of the X1-UV-3725 is its ability to measure both
germicidal UV output to ensure efficacy and ICNIRP/ACGIH/ IEC 62471
hazard weighted irradiance values (μW/cm²) for a 254 nm low-pressure Hg
lamps.
| Main features | Mobile measuring device with separate detector. Easy to use. Large measuring range for high radiation intensities for disinfection efficacy of Hg lamps and low radiation levels for the evaluation of UV hazard. |
| Measurement ranges | For 254 nm low pressure Hg lamps. Linear measuring range up to > 2000 mW / cm² with instrument X1. N.E.I. 0.004 μW / cm². Resolution 0.001 μW / cm² |
| Calibration | Calibration of the absolute responsivity at 254 nm and the relative spectral responsivity |
| Display | X1 Handheld meter for display of irradiance mW/cm2 and dose J/cm2 with peak-hold function |
